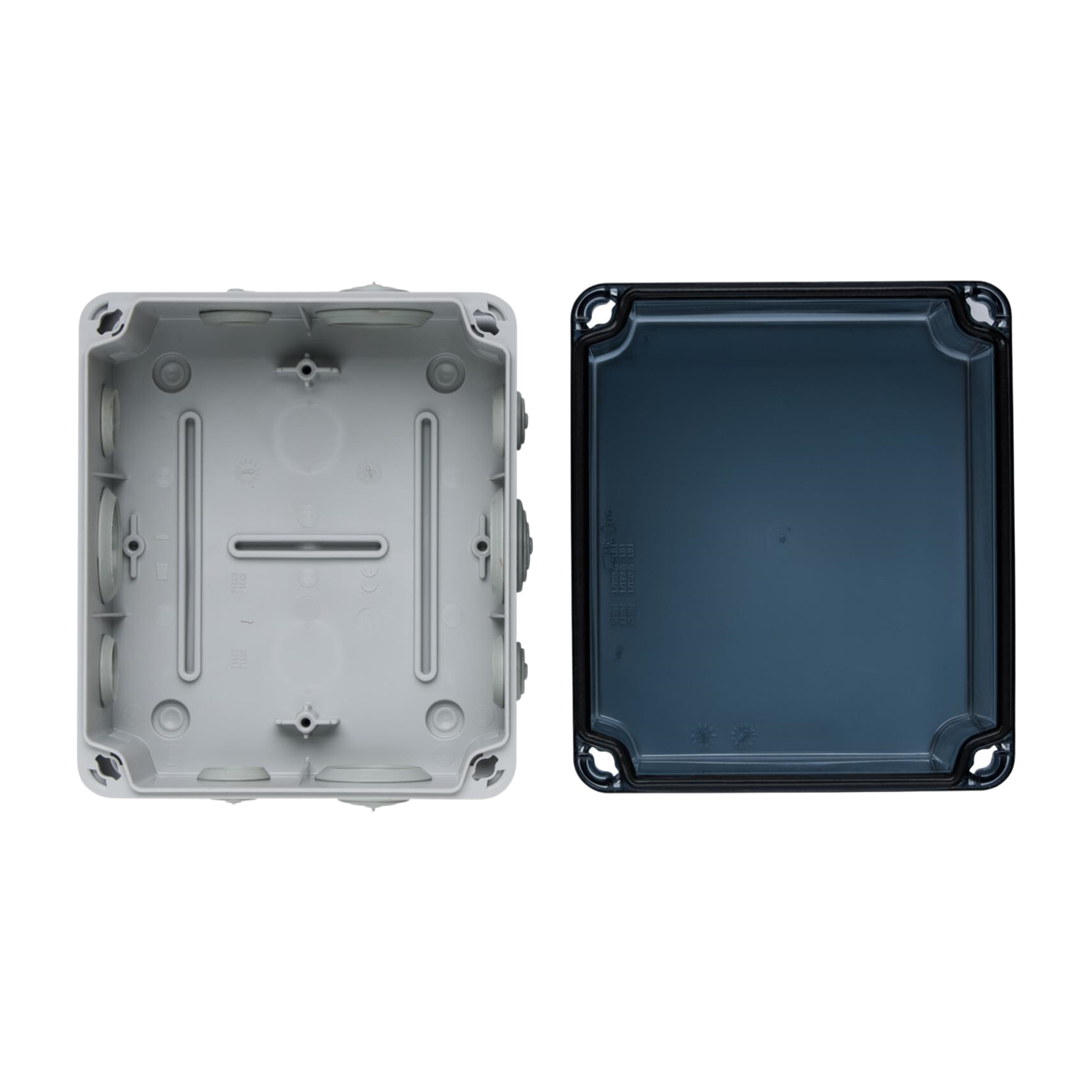

Grommet Cable Entry Surface Mounted Transparent Cover

An ideal solution for outdoor and industrial applications. Constructed from high-quality ABS material, this junction box is built to withstand challenging conditions, ensuring reliable and long-lasting performance.
Featuring a transparent cover, this junction box provides easy visual inspection of the internal components without the need to open the cover. The grommet cable entry design, made of polycarbonate, allows for convenient installation of cables and conduits of various diameters without the need for specialized glands.
With its IP rating, this junction box is fully protected against dust and water ingress, ensuring maximum reliability in harsh environments.

Surface Mounted, ABS Transparent, Cable Entry with Grommet - IP54
Item Code Raw Material Dimension (mm) Ingress Protection Cable Entry Cover
QPJ-00002I-000 ABS-PC 150x110x70 IP54 Grommet Transparent
QPJ-00002J-000 ABS-PC 150x150x70 IP54 Grommet Transparent
Surface Mounted, ABS Transparent, Cable Entry with Grommet - IP65
Item Code Raw Material Dimension (mm) Ingress Protection Cable Entry Cover
QPJ-00002K-000 ABS-PC 150x110x70 IP65 Grommet Transparent
QPJ-00002L-000 ABS-PC 150x150x70 IP65 Grommet Transparent
QPJ-00002M-000 ABS-PC 190x145x80 IP65 Grommet Transparent
QPJ-00002N-000 ABS-PC 250x200x90 IP65 Grommet Transparent
QPJ-00002O-000 ABS-PC 310x230x130 IP65 Grommet Transparent
QPJ-00002P-000 ABS-PC 400x480x140 IP65 Grommet Transparent
QPJ-00002Q-000 ABS-PC 150x110x140 IP65 Grommet Transparent
QPJ-00002R-000 ABS-PC 190x145x140 IP65 Grommet Transparent
QPJ-00002S-000 ABS-PC 250x200x160 IP65 Grommet Transparent
QPJ-00002T-000 ABS-PC 310x230x180 IP65 Grommet Transparent
